OpenMRS+Keycloak+Fhir2

Development
1

Hello I faced with few problems there. Env:

  1. SMART app configuration:
{
  "id": "patient.monitor",
  "description": "patient.monitor",
  "order": 1,
  "config" : {
    "launchUrl" : "https://localhost/patient-monitor/launch.html",
    "launchType" : "EHR",
    "launchContext" : "patient",
    "fhirVersion" : "R4"
  },
  "extensions": [
    {
      "id": "smartapps.patientMonitorHomepageLink",
      "extensionPointId": "smartAppManagement.apps",
      "type": "link",
      "label": "patient.monitor",
      "url": "smartonfhir/smartAppsRedirect.page?app=patient.monitor",
      "icon": "icon-hdd",
      "requiredPrivilege": "App: smartonfhir.patientMonitorHomepageLink"
    }
  ]
}

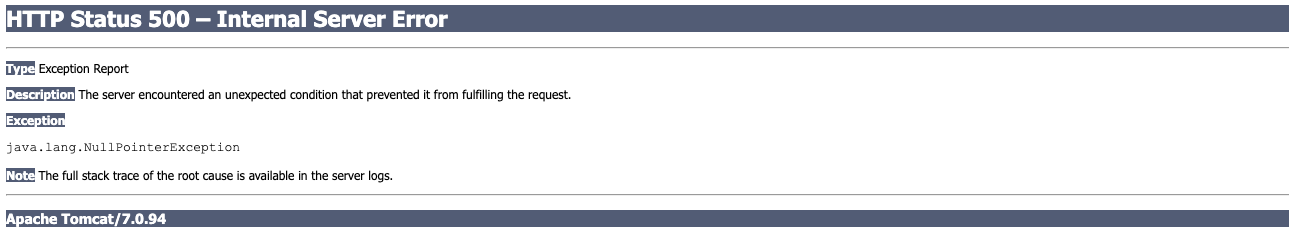

the main problem which I have at the moment is NullPointerException on each request eg. GET http://localhost:8080/openmrs/ws/fhir2/R4/Patient/3ca34181-1834-4ddb-aee8-88e1525e0870 response:

<body>
    <h1>HTTP Status 500 – Internal Server Error</h1>
    <hr class="line" />
    <p><b>Type</b> Exception Report</p>
    <p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.
    </p>
    <p><b>Exception</b>
        <pre>java.lang.NullPointerException
</pre>
    </p>
    <p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p>
    <hr class="line" />
    <h3>Apache Tomcat/7.0.94</h3>
</body>
1 Like
2

okay, let’s connect on zoom. sending you the zoom link.

3

@ibacher I think the docker-compose.yml file is not working properly in Mac OS but it is working fine in Linux. we are not able to access http://localhost:8080/openmrs when running the docker-compose file in mac.

4

unfortunately, there is problem not only in openmrs access. there is my docker-compose.yml (3.3 KB) file. I can access http://localhost:8080/openmrs but when I try make request http://localhost:8080/openmrs/ws/fhir2/R4/Encounter/a7b97a9f-b505-46ef-8162-3ed49db35c04

HttpError: 500 Internal Server Error
URL: http://localhost:8080/openmrs/ws/fhir2/R4/Encounter/a7b97a9f-b505-46ef-8162-3ed49db35c04

<!doctype html><html lang="en"><head><title>HTTP Status 500 – Internal Server Error</title><style type="text/css">H1 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:14px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;}A {color : black;}A.name {color : black;}HR {color : #525D76;}</style></head><body><h1>HTTP Status 500 – Internal Server Error</h1><hr class="line" /><p><b>Type</b> Exception Report</p><p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.</p><p><b>Exception</b> <pre>java.lang.NullPointerException
	java.net.URI$Parser.parse(URI.java:3041)
	java.net.URI.&lt;init&gt;(URI.java:588)
	java.net.URI.create(URI.java:850)
	org.apache.http.client.methods.HttpGet.&lt;init&gt;(HttpGet.java:66)
	org.keycloak.adapters.rotation.JWKPublicKeyLocator.sendRequest(JWKPublicKeyLocator.java:97)
	org.keycloak.adapters.rotation.JWKPublicKeyLocator.getPublicKey(JWKPublicKeyLocator.java:63)
	org.keycloak.adapters.rotation.AdapterTokenVerifier.getPublicKey(AdapterTokenVerifier.java:121)
	org.keycloak.adapters.rotation.AdapterTokenVerifier.createVerifier(AdapterTokenVerifier.java:111)
	org.keycloak.adapters.rotation.AdapterTokenVerifier.verifyToken(AdapterTokenVerifier.java:47)
	org.keycloak.adapters.BearerTokenRequestAuthenticator.authenticateToken(BearerTokenRequestAuthenticator.java:103)
	org.keycloak.adapters.BearerTokenRequestAuthenticator.authenticate(BearerTokenRequestAuthenticator.java:88)
	org.keycloak.adapters.RequestAuthenticator.authenticate(RequestAuthenticator.java:67)
	org.keycloak.adapters.servlet.KeycloakOIDCFilter.doFilter(KeycloakOIDCFilter.java:195)
	org.openmrs.module.smartonfhir.web.filter.SmartAuthenticationFilter.doFilter(SmartAuthenticationFilter.java:78)
	org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)
	org.openmrs.module.smartonfhir.web.filter.CORSFilter.doFilterInternal(CORSFilter.java:49)
	org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)
	org.openmrs.module.spa.filter.SpaFilter.doFilter(SpaFilter.java:53)
	org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)
	org.openmrs.module.web.filter.ModuleFilter.doFilter(ModuleFilter.java:57)
	org.openmrs.web.filter.OpenmrsFilter.doFilterInternal(OpenmrsFilter.java:105)
	org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	org.springframework.orm.hibernate5.support.OpenSessionInViewFilter.doFilterInternal(OpenSessionInViewFilter.java:156)
	org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)
	org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)
	org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)
	org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
	org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
</pre></p><p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p><hr class="line" /><h3>Apache Tomcat/7.0.94</h3></body></html>
    at _callee$ (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:12695:21)
    at tryCatch (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:455:40)
    at Generator.invoke [as _invoke] (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:685:22)
    at Generator.next (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:510:21)
    at asyncGeneratorStep (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:99:24)
    at _next (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:121:9)
    at https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:128:7
    at new Promise (<anonymous>)
    at https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:117:12
    at _checkResponse (https://cdn.jsdelivr.net/npm/fhirclient/build/fhir-client.js:12712:25)
5

the same for Patient request. I prepared all details for you: GET http://localhost:8080/openmrs/ws/fhir2/R4/Patient/455564f4-242e-432a-9d3c-0447c08662a3 500 Internal Server Error

Response Headers:

HTTP/1.1 500 Internal Server Error

Server: Apache-Coyote/1.1

Set-Cookie: JSESSIONID=0DCA2FADB424992F4A5A5B2744FD1A7A; Path=/openmrs; HttpOnly

Access-Control-Allow-Origin: *

Content-Type: text/html;charset=utf-8

Content-Language: en

Content-Length: 3721

Date: Tue, 15 Feb 2022 14:01:09 GMT

Connection: close

Request Headers:

GET /openmrs/ws/fhir2/R4/Patient/455564f4-242e-432a-9d3c-0447c08662a3 HTTP/1.1

Host: localhost:8080

Connection: keep-alive

sec-ch-ua: " Not A;Brand";v="99", "Chromium";v="98", "Google Chrome";v="98"

accept: application/json

DNT: 1

authorization: Bearer eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJLZ0Fpd2ZBMG1ZdWN0Y3JYS3M2M0ZUdVQyX3g0Z1JTbVdPYzdIWmxDNTd3In0.eyJleHAiOjE2NDQ5MzM5NjksImlhdCI6MTY0NDkzMzY2OSwiYXV0aF90aW1lIjoxNjQ0OTMzNjY4LCJqdGkiOiJkZDU0NzBhMS01NGMxLTQ5YjQtYWY3ZS0zN2FkNmE4ZGY3NzgiLCJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgxODAvYXV0aC9yZWFsbXMvb3Blbm1ycyIsImF1ZCI6ImFjY291bnQiLCJzdWIiOiJmOmQ5ZTU5NGQyLTFhOTQtNGIzYy05MGU0LTgwYWJiOTgwMzk2ODoxIiwidHlwIjoiQmVhcmVyIiwiYXpwIjoic21hcnRDbGllbnQiLCJzZXNzaW9uX3N0YXRlIjoiY2VhZGRlMmQtYThhNi00ZWYyLTllOTQtYjM5NDk5ODg2ZWY0IiwiYWNyIjoiMSIsImFsbG93ZWQtb3JpZ2lucyI6WyIqIl0sInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIl19LCJyZXNvdXJjZV9hY2Nlc3MiOnsiYWNjb3VudCI6eyJyb2xlcyI6WyJtYW5hZ2UtYWNjb3VudCIsIm1hbmFnZS1hY2NvdW50LWxpbmtzIiwidmlldy1wcm9maWxlIl19fSwic2NvcGUiOiJwYXRpZW50L1BhdGllbnQucmVhZCBsYXVuY2gvZW5jb3VudGVyIHByb2ZpbGUgZW5jb3VudGVyLyoucmVhZCBsYXVuY2gvcGF0aWVudCBwYXRpZW50LyoucmVhZCBsYXVuY2ggZW1haWwiLCJlbWFpbF92ZXJpZmllZCI6ZmFsc2UsInByZWZlcnJlZF91c2VybmFtZSI6ImFkbWluIn0.hFT2tTZg50pMvJkZDYcB_5Xa9JQoWDZwpBC6mO2gCoYY6_9L16cHpzE3rBLJQtBw7xtqhpRqEhuK8Ydy2pImzlASRE6kLxdg6bGh1X7ailxllak-d4Q7xHEkmQKJ6H0XIFNPyqk5F1YfNkjMvpYls6X3riMjlB3d3dujj1fkeo8ias5Yy6NAZf_0V8jActs1RTVyps2KAmBtMhaP3iibRil3U73kDopafsf44eqH_TPlPHMdRoEq_hodJsPPY1pM1Glg9IiZiQZj_7CBu1PWkuUluMeufRIY2r2ANKYR1d50-rMvFxr7KUcl1oo7Pz-xbJgkjW5GGSgU5phm99k39A

sec-ch-ua-mobile: ?0

User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/98.0.4758.102 Safari/537.36

sec-ch-ua-platform: "macOS"

Origin: http://localhost:9090

Sec-Fetch-Site: same-site

Sec-Fetch-Mode: cors

Sec-Fetch-Dest: empty

Referer: http://localhost:9090/

Accept-Encoding: gzip, deflate, br

Accept-Language: ru-RU,ru;q=0.9,en-US;q=0.8,en;q=0.7

Respomse:

<!doctype html><html lang="en"><head><title>HTTP Status 500 – Internal Server Error</title><style type="text/css">H1 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:14px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;}A {color : black;}A.name {color : black;}HR {color : #525D76;}</style></head><body><h1>HTTP Status 500 – Internal Server Error</h1><hr class="line" /><p><b>Type</b> Exception Report</p><p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.</p><p><b>Exception</b> <pre>java.lang.NullPointerException

java.net.URI$Parser.parse(URI.java:3041)

java.net.URI.&lt;init&gt;(URI.java:588)

java.net.URI.create(URI.java:850)

org.apache.http.client.methods.HttpGet.&lt;init&gt;(HttpGet.java:66)

org.keycloak.adapters.rotation.JWKPublicKeyLocator.sendRequest(JWKPublicKeyLocator.java:97)

org.keycloak.adapters.rotation.JWKPublicKeyLocator.getPublicKey(JWKPublicKeyLocator.java:63)

org.keycloak.adapters.rotation.AdapterTokenVerifier.getPublicKey(AdapterTokenVerifier.java:121)

org.keycloak.adapters.rotation.AdapterTokenVerifier.createVerifier(AdapterTokenVerifier.java:111)

org.keycloak.adapters.rotation.AdapterTokenVerifier.verifyToken(AdapterTokenVerifier.java:47)

org.keycloak.adapters.BearerTokenRequestAuthenticator.authenticateToken(BearerTokenRequestAuthenticator.java:103)

org.keycloak.adapters.BearerTokenRequestAuthenticator.authenticate(BearerTokenRequestAuthenticator.java:88)

org.keycloak.adapters.RequestAuthenticator.authenticate(RequestAuthenticator.java:67)

org.keycloak.adapters.servlet.KeycloakOIDCFilter.doFilter(KeycloakOIDCFilter.java:195)

org.openmrs.module.smartonfhir.web.filter.SmartAuthenticationFilter.doFilter(SmartAuthenticationFilter.java:78)

org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)

org.openmrs.module.smartonfhir.web.filter.CORSFilter.doFilterInternal(CORSFilter.java:49)

org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)

org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)

org.openmrs.module.spa.filter.SpaFilter.doFilter(SpaFilter.java:53)

org.openmrs.module.web.filter.ModuleFilterChain.doFilter(ModuleFilterChain.java:71)

org.openmrs.module.web.filter.ModuleFilter.doFilter(ModuleFilter.java:57)

org.openmrs.web.filter.OpenmrsFilter.doFilterInternal(OpenmrsFilter.java:105)

org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)

org.springframework.orm.hibernate5.support.OpenSessionInViewFilter.doFilterInternal(OpenSessionInViewFilter.java:156)

org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)

org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)

org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)

org.openmrs.web.filter.StartupFilter.doFilter(StartupFilter.java:108)

org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)

org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)

</pre></p><p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p><hr class="line" /><h3>Apache Tomcat/7.0.94</h3></body></html>
6

Thanks for this very interesting post @mrserwin & @theanandankit! Ian is sick today but I’m sure he’ll review this when he’s back. Thanks in advance for your patience :slight_smile:

7

@mrserwin What’s the contents of your smart-keycloak.json file?

8

@ibacher this is standart file

  {
    "realm": "openmrs",
    "auth-server-url": "http://localhost:8180/auth/",
    "ssl-required": "external",
    "resource": "smartClient",
    "public-client": true,
    "confidential-port": 0
  }

and this is file which I used for my application

  {
    "realm": "openmrs",
    "auth-server-url": "http://localhost:8180/auth/",
    "ssl-required": "external",
    "resource": "384a2222-b298-4a39-a4f8-369926488961",
    "public-client": true,
    "confidential-port": 0
  }

changed only application ID

BTW. I’m not sure is that correct place /usr/local/tomcat/.OpenMRS/config/ why no /usr/local/tomcat/.OpenMRS/configuration/ folder which OpenMRS has from box

also, should it be different config files for each SMART app or we can store all configs in one file like an array of smart app configs?

9

It wasn’t out of the box when this was written, but yes, this needs to be fixed.

What do you get when you go to the URL: http://localhost:8180/auth/realms/openmrs/.well-know/openid-configuration?

10

openid-configuration.json (3.8 KB)

11

That looks to be in order, which suggests that the problem is that OpenMRS can’t load the file for some reason, most likely because it can’t reach the Keycloak server.

To test this, you could try to connect to the same URL using curl from the OpenMRS container, i.e.,:

docker-compose exec openmrs-referenceapplication curl -vL http://localhost:8180/auth/realms/openmrs/.well-known/openid-configuration

And see if that returns an error (it expects a response with an HTTP status code of 200 and the contents of the file you posted).

12

this returns nothing

docker-compose exec openmrs-referenceapplication curl -vL http://localhost:8180/auth/realms/openmrs/.well-known/openid-configuration

but :

curl -vL http://localhost:8180/auth/realms/openmrs/.well-known/openid-configuration

*   Trying ::1:8180...
* Connected to localhost (::1) port 8180 (#0)
> GET /auth/realms/openmrs/.well-known/openid-configuration HTTP/1.1
> Host: localhost:8180
> User-Agent: curl/7.77.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Cache-Control: no-cache, must-revalidate, no-transform, no-store
< X-XSS-Protection: 1; mode=block
< X-Frame-Options: SAMEORIGIN
< Referrer-Policy: no-referrer
< Date: Thu, 17 Feb 2022 14:13:18 GMT
< Connection: keep-alive
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< X-Content-Type-Options: nosniff
< Content-Type: application/json
< Content-Length: 3910
<
* Connection #0 to host localhost left intact
{"issuer":"http://localhost:8180/auth/realms/openmrs","authorization_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/auth","token_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/token","introspection_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/token/introspect","userinfo_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/userinfo","end_session_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/logout","jwks_uri":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/certs","check_session_iframe":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/login-status-iframe.html","grant_types_supported":["authorization_code","implicit","refresh_token","password","client_credentials","urn:ietf:params:oauth:grant-type:device_code","urn:openid:params:grant-type:ciba"],"response_types_supported":["code","none","id_token","token","id_token token","code id_token","code token","code id_token token"],"subject_types_supported":["public","pairwise"],"id_token_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"id_token_encryption_alg_values_supported":["RSA-OAEP","RSA-OAEP-256","RSA1_5"],"id_token_encryption_enc_values_supported":["A256GCM","A192GCM","A128GCM","A128CBC-HS256","A192CBC-HS384","A256CBC-HS512"],"userinfo_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512","none"],"request_object_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512","none"],"response_modes_supported":["query","fragment","form_post"],"registration_endpoint":"http://localhost:8180/auth/realms/openmrs/clients-registrations/openid-connect","token_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"token_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"introspection_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"introspection_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"claims_supported":["aud","sub","iss","auth_time","name","given_name","family_name","preferred_username","email","acr"],"claim_types_supported":["normal"],"claims_parameter_supported":true,"scopes_supported":["openid","profile","encounter/*.read","patient/*.read","phone","web-origins","roles","address","patient/Patient.read","launch/encounter","launch","email","launch/patient","microprofile-jwt","offline_access"],"request_parameter_supported":true,"request_uri_parameter_supported":true,"require_request_uri_registration":true,"code_challenge_methods_supported":["plain","S256"],"tls_client_certificate_bound_access_tokens":true,"revocation_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/revoke","revocation_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"revocation_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"backchannel_logout_supported":true,"backchannel_logout_session_supported":true,"device_authorization_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/auth/device","backchannel_token_delivery_modes_supported":["poll"],"backchannel_authentication_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/ext/ciba/auth"}%
13

The main reason for suggesting that is to suss-out if it’s some kind of Docker networking configuration issue which it might be if there’s no output. You could also try running docker-compose exec openmrs-referenceapplication sh and then in the new shell running the curl command.

Obviously from your computer you are able to reach the correct file on the Keycloak server… the question is whether the openmrs-referenceapplication container can reach the Keycloak server.

14

it does not work for me.

I connected to my openmrs-referenceapplication terminal and called this commant and you are right - this image does not have access

# curl -vL http://localhost:8180/auth/realms/openmrs/.well-known/openid-configuration
*   Trying 127.0.0.1...
* TCP_NODELAY set
* connect to 127.0.0.1 port 8180 failed: Connection refused
*   Trying ::1...
* TCP_NODELAY set
* Immediate connect fail for ::1: Cannot assign requested address
*   Trying ::1...
* TCP_NODELAY set
* Immediate connect fail for ::1: Cannot assign requested address
* Failed to connect to localhost port 8180: Connection refused
* Closing connection 0
curl: (7) Failed to connect to localhost port 8180: Connection refused
#
15

@theanandankit @ibacher if I use your docker-compose.yml file without changes where network mode is host. I can access this link

network_mode: “host”

# curl -vL http://localhost:8180/auth/realms/openmrs/.well-known/openid-configuration
*   Trying ::1...
* TCP_NODELAY set
* connect to ::1 port 8180 failed: Connection refused
*   Trying 127.0.0.1...
* TCP_NODELAY set
* Connected to localhost (127.0.0.1) port 8180 (#0)
> GET /auth/realms/openmrs/.well-known/openid-configuration HTTP/1.1
> Host: localhost:8180
> User-Agent: curl/7.52.1
> Accept: */*
>
< HTTP/1.1 200 OK
< Cache-Control: no-cache, must-revalidate, no-transform, no-store
< X-XSS-Protection: 1; mode=block
< X-Frame-Options: SAMEORIGIN
< Referrer-Policy: no-referrer
< Date: Fri, 18 Feb 2022 07:53:19 GMT
< Connection: keep-alive
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< X-Content-Type-Options: nosniff
< Content-Type: application/json
< Content-Length: 3910
<
{"issuer":"http://localhost:8180/auth/realms/openmrs","authorization_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/auth","token_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/token","introspection_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/token/introspect","userinfo_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/userinfo","end_session_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/logout","jwks_uri":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/certs","check_session_iframe":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/login-status-iframe.html","grant_types_supported":["authorization_code","implicit","refresh_token","password","client_credentials","urn:ietf:params:oauth:grant-type:device_code","urn:openid:params:grant-type:ciba"],"response_types_supported":["code","none","id_token","token","id_token token","code id_token","code token","code id_token token"],"subject_types_supported":["public","pairwise"],"id_token_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"id_token_encryption_alg_values_supported":["RSA-OAEP","RSA-OAEP-256","RSA1_5"],"id_token_encryption_enc_values_supported":["A256GCM","A192GCM","A128GCM","A128CBC-HS256","A192CBC-HS384","A256CBC-HS512"],"userinfo_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512","none"],"request_object_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512","none"],"response_modes_supported":["query","fragment","form_post"],"registration_endpoint":"http://localhost:8180/auth/realms/openmrs/clients-registrations/openid-connect","token_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"token_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"introspection_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"introspection_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"claims_supported":["aud","sub","iss","auth_time","name","given_name","family_name","preferred_username","email","acr"],"claim_types_supported":["normal"],"claims_parameter_supported":true,"scopes_supported":["openid","profile","encounter/*.read","patient/*.read","phone","web-origins","roles","address","patient/Patient.read","launch/encounter","launch","email","launch/patient","microprofile-jwt","offline_access"],"request_parameter_supported":true,"request_uri_parameter_supported":true,"require_request_uri_registration":true,"code_challenge_methods_sup* Curl_http_done: called premature == 0
* Connection #0 to host localhost left intact
ported":["plain","S256"],"tls_client_certificate_bound_access_tokens":true,"revocation_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/revoke","revocation_endpoint_auth_methods_supported":["private_key_jwt","client_secret_basic","client_secret_post","tls_client_auth","client_secret_jwt"],"revocation_endpoint_auth_signing_alg_values_supported":["PS384","ES384","RS384","HS256","HS512","ES256","RS256","HS384","ES512","PS256","PS512","RS512"],"backchannel_logout_supported":true,"backchannel_logout_session_supported":true,"device_authorization_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/auth/device","backchannel_token_delivery_modes_supported":["poll"],"backchannel_authentication_endpoint":"http://localhost:8180/auth/realms/openmrs/protocol/openid-connect/ext/ciba/auth"}#

but I cant access

http://localhost:8080/openmrs

from my browser :slight_smile:

16

I think we should configure our docker-compose file without using host mode

the same problem here https://groups.google.com/g/dcm4che/c/lEF4QQ7UOnY/m/hfJren18CQAJ

17

The alternative way of setting this up would be to change the references inside the configuration files to point to http://keycloak:8180/, but then you’ll need to modify the hosts file for your computer so that keycloak resolves to 127.0.0.1 because, IIRC, there’s an unfortunate requirement that Keycloak be addressable on the same address from both the backend container (openmrs) and your browser (on your local computer).

That’s why we set things up using network_mode: host in the first place… it’s was to get http://localhost:8180 to resolve to the Keycloak server both from the perspective of your browser and the perspective of the openmrs container.

It’s probably much simpler to just skip the Docker setup altogether and run Keycloak locally on your machine.

18

but it does not work on MacOS 100% and it did not work on Windows too. So may be this is not the best solution

I tried this case too, BTW I showd it to @theanandankit on our call. There was the same problem (maybe not same but similar) .

<body>
	<h1>HTTP Status 500 – Internal Server Error</h1>
	<hr class="line" />
	<p><b>Type</b> Exception Report</p>
	<p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.
	</p>
	<p><b>Exception</b>
		<pre>java.lang.NullPointerException
</pre>
	</p>
	<p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p>
	<hr class="line" />
	<h3>Apache Tomcat/7.0.94</h3>
</body>

153818851-8619104d-23fd-402d-81b3-9d520cfcb7eb
153818851-8619104d-23fd-402d-81b3-9d520cfcb7eb1289×246 22.6 KB
I described this problem here Few errors on getting data from fhir server · Issue #552 · openmrs/openmrs-esm-patient-chart · GitHub

19

Docker Desktop is, unfortunately, a bit of a moving target. This setup did work for me 100% on a Mac when it was originally setup, but it is entirely possible that something has changed in the interim.

You’re right that it’s likely a similar problem, i.e., the NPE seems to be the result of the OpenMRS container being unable to connect to the /.well-known/openid-configuration endpoint for the Keycloak server so that it doesn’t have the appropriate configuration setup. It’s important that the:

"auth-server-url": "http://localhost:8180/auth/",

Point to the Keycloak server. IIRC, Keycloak defaults to using port 8080, but you can shift the ports it uses using the -Djboss.socket.binding.port-offset=100 when running Keycloak to make it accessible on 8180 instead.

1 Like
20

I run it as described in your WIKI

sudo ./bin/standalone.sh -Djboss.socket.binding.port-offset=100
